价格：电议
更新时间： 2025-01-20 18:36:02
型号：FM-D5801DV
厂商：深圳市金通方略科技发展有限公司
货期：现货
FSN58寸4K医疗监视器
FM-D5801DV
• High Brightness, High Contrast LCD
Technology.
• Grayscale and Color Imaging on a Single
Multi-Modality Disy.
• Uniform Brightness is Held Constant Across
the Entire Screen Surface.
• Luminance Stability with Backlight Sensor

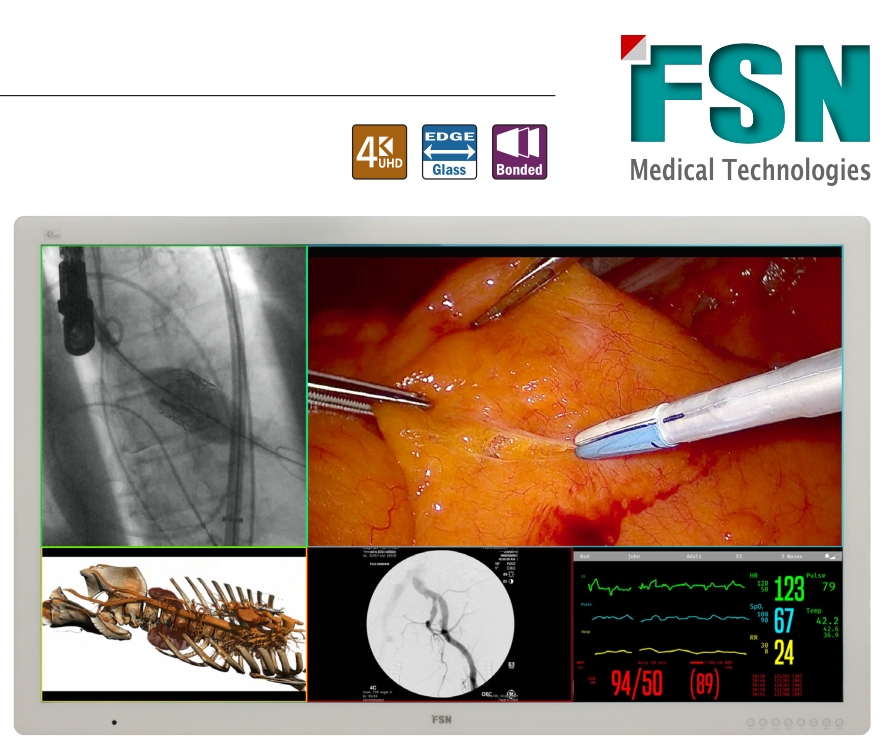

FSN has expanded its range of medical grade monitors to
include FM-D5801DV, a large-area disy designed to handle
a vast array of tasks in the OR from patient monitoring to
endoscopic images to X-ray and ultrasound. The FM-D5801DV
can show multiple screens at the same time on its large
surface area. A flush-front protective glass overlay allows for
easy cleaning
• 大屏幕实现色彩细节再现
• 信号输入选择范围广
• 内置多窗口布
看清每一次细节
该显示器提供清图像与*的观看角度，几位临床医生可同时查看高质量的详图，不存在有损图像或失真图像。显示器分辨率为 3840 x 2160，极大地增强了来自内窥镜相机系统图像的画质。输入源包括 DVI、HDMI、SDI 和 DisyPort。FM-A5504
DG 模式增加 12G SDI 到高级信号选项。
针对多窗口的需求，我们为 FM-A5504D 显示器系列提供足够的空间。从 PIP、PBP、Triple 或 Quad 布中进行选择，这些布在屏幕上的显示菜单均为预先设置和便携式的。
显示器采用无边框防护性遮光玻璃，外观偏薄，光滑细腻。前表面容易清理。圆形边框角可减少碰撞带来的伤害，特别是在当今活动频繁的手术室环境里。 每台显示器后方配备电缆盖，用来规管电线。
General Features
Item Description
Panel 58 inch TFT LCD (LED)
Resolution 3840 x 2160 pixel
Aspect Ratio 16 : 9
Active Area 1270.08 (H)mm x 721.44 (V)mm
Pixel Pitch (mm) 0.33075 x 0.334
Response Time (typ.) 9.5 ms (gray to gray)
Number of Colors 1.07 Billion
Brightness (typical) 700 cd/m 2
Gamut BT.709 and BT.2020 compatible
Contrast Ratio (typical) 4000 : 1
Surface Treatment Anti-glare
Viewing Angle (CR>20) R/L 176°, U/D 176°
Input Signal
1 x HDMI 2.0
2 x DP 1.2 (SST)
1 x DVI (single link)
2 x DVI (dual link
Output Signal
1 x DP 1.2 (SST)
Power Supply SMPS (AC 90 ~270V)
Power Consumption 280W (nominal); 350.4W (max)
Accessories Included
User manual, AC power cord, DP cable, HDMI
cable, DVI-D cable, Remote control and batteries
Unit Dimension
1358(W) x 822(H) x 105(D) mm
53.46(W) x 32.36(H) x 4.13(D) inch
Package Dimension
1565(W) x 985(H) x 305(D) mm
61.61(W) x 38.78(H) x 12(D) inch
IP Rating IP20 - overall, IP42 - front side only
IK Rating IK08 with 5H AR glass
Weight
43.41 kg, 95.7 lbs. (monitor with cover)
60.1 kg, 132.5 lbs. (shipping package)
DICOM Mode Yes
Backlight Sensor Yes
Certifications
ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA
C22.2 No. 60601-1, FCC Class B, EN60601-1,
EN60601-1-2, CE, MDR(EU) 2017/745 Class I
Medical Device
