价格：电议
更新时间： 2025-01-20 18:34:53
型号：FM-B2702DS,FM-B2702D...
厂商：深圳市金通方略科技发展有限公司
货期：现货

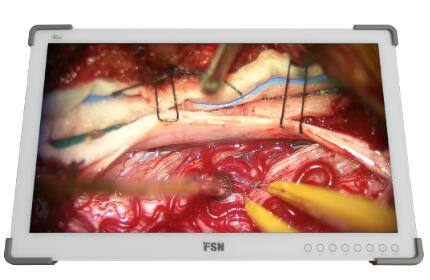

FSN27寸4K医疗监视器FM-B2702DS FM-B2702DG
FM-B2702DS FM-B2702DG对于要求高亮度、高色彩饱和度的应用，宽视角的设备是*理想的医用级显示器。4K UHD分辨率是全高清显示器的4倍。
这意味着在手术过程中，细节变得更清晰，更容易识别。
屏 幕 布 控 制
FSN的OSD菜单选项设计用于在连接两个视频信号时提供普遍的布选择。 图像可显示为画中画或画旁画。 它们可以交换、重新调整大小或移动到屏幕上的不同位置。 结合其宽视角，该显示器具有当今手术室需的可视化功能。
General Features
Item Description
Panel 27 inch TFT LCD (LED)
Resolution 3840 x 2160 pixel
Aspect Ratio 16 : 9
Active Area 596.74 (H)mm x 335.66 (V)mm
Pixel Pitch (mm) 0.1554 x 0.1554
Response Time (typical) 11 ms (rise time)
Number of Colors 1.07 Billion
Brightness (typical) 800 cd/m 2
Contrast Ratio (typical) 1400 : 1
Surface Treatment Anti-glare
Viewing Angle (CR>10) R/L 178°, U/D 178°
Input Signal
1 x HDMI 2.0
1 x DP 1.2 (MST)
1 x DP 1.2 (SST)
1 x DVI (single link)
4 x SDI (3G) available on FM-B2702DS
4 x SDI (3G), 2 x SDI (12G) available on FM-B2702DG
Output Signal
Power Supply AC/DC Adaptor (AC 100~240V, DC 24V/6.6A)
Power Consumption
FM-B2702D 85W
FM-B2702DS 100W
FM-B2702DG 100W
Accessories Included
User manual, AC-DC adaptor, AC power cord, DP
cable, HDMI cable, DVI-D cable, BNC cable (SDI
models), Screw BH M4 x 14
Unit Dimension
673(W) x 425(H) x 75.2(D) mm
26.50(W) x 16.73(H) x 2.96(D) inch
Package Dimension
755.65(W) x 654.05(H) x 234.95(D)
29.75(W) x 25.75(H) x 9.25(D)
IP Rating IP33 - overall
Weight
FM-B2702D
8.73 kg, 19.25 lbs. (monitor with cover)
13.45 kg, 29.65 lbs. (shipping package)
FM-B2702DS
9.2 kg, 20.28 lbs. (monitor with cover)
14.1 kg, 31.09 lbs. (shipping package)
FM-B2702DG
Certifications
ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA
C22.2 No. 60601-1, FCC Class B, EN60601-1,
EN60601-1-2, CE, MDD(93/42/EEC) Class I
Medical Device
其他推荐产品
京公网安备 11010802024102号
FSN27寸4K医疗监视器FM-B2702DS FM-B2702DG
FM-B2702DS FM-B2702DG对于要求高亮度、高色彩饱和度的应用，宽视角的设备是*理想的医用级显示器。4K UHD分辨率是全高清显示器的4倍。
这意味着在手术过程中，细节变得更清晰，更容易识别。
屏 幕 布 控 制
FSN的OSD菜单选项设计用于在连接两个视频信号时提供普遍的布选择。 图像可显示为画中画或画旁画。 它们可以交换、重新调整大小或移动到屏幕上的不同位置。 结合其宽视角，该显示器具有当今手术室需的可视化功能。
General Features
Item Description
Panel 27 inch TFT LCD (LED)
Resolution 3840 x 2160 pixel
Aspect Ratio 16 : 9
Active Area 596.74 (H)mm x 335.66 (V)mm
Pixel Pitch (mm) 0.1554 x 0.1554
Response Time (typical) 11 ms (rise time)
Number of Colors 1.07 Billion
Brightness (typical) 800 cd/m 2
Contrast Ratio (typical) 1400 : 1
Surface Treatment Anti-glare
Viewing Angle (CR>10) R/L 178°, U/D 178°
Input Signal
1 x HDMI 2.0
1 x DP 1.2 (MST)
1 x DP 1.2 (SST)
1 x DVI (single link)
4 x SDI (3G) available on FM-B2702DS
4 x SDI (3G), 2 x SDI (12G) available on FM-B2702DG
Item Description
Output Signal
1 x DP 1.2 (SST)
1 x DVI (single link)
4 x SDI (3G) available on FM-B2702DS
4 x SDI (3G), 2 x SDI (12G) available on FM-B2702DG
Power Supply AC/DC Adaptor (AC 100~240V, DC 24V/6.6A)
Power Consumption
FM-B2702D 85W
FM-B2702DS 100W
FM-B2702DG 100W
Accessories Included
User manual, AC-DC adaptor, AC power cord, DP
cable, HDMI cable, DVI-D cable, BNC cable (SDI
models), Screw BH M4 x 14
Unit Dimension
673(W) x 425(H) x 75.2(D) mm
26.50(W) x 16.73(H) x 2.96(D) inch
Package Dimension
755.65(W) x 654.05(H) x 234.95(D)
29.75(W) x 25.75(H) x 9.25(D)
IP Rating IP33 - overall
Weight
FM-B2702D
8.73 kg, 19.25 lbs. (monitor with cover)
13.45 kg, 29.65 lbs. (shipping package)
FM-B2702DS
9.2 kg, 20.28 lbs. (monitor with cover)
14.1 kg, 31.09 lbs. (shipping package)
FM-B2702DG
9.2 kg, 20.28 lbs. (monitor with cover)
14.1 kg, 31.09 lbs. (shipping package)
Certifications
ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA
C22.2 No. 60601-1, FCC Class B, EN60601-1,
EN60601-1-2, CE, MDD(93/42/EEC) Class I
Medical Device
