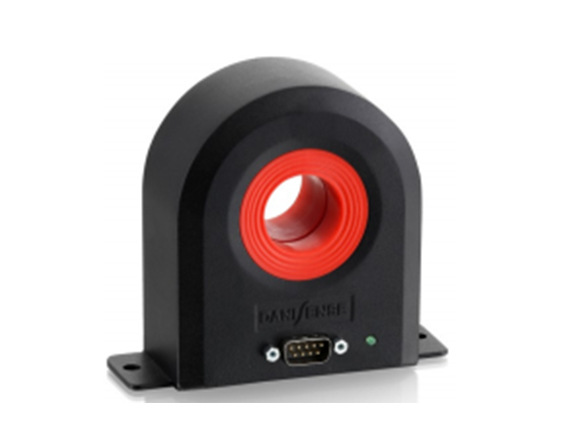

丹麦Danisense磁通门电流传感器电流互感器DS600 IDSAC100

Ultra-stable, high precision (ppm ) fluxgate technology DS Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1000A



Features

Linearity error maximum 1 ppm

Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in accuracy and stability

100 turns calibration winding available in DSUB 9 connector - For up to ±50A test and calibration in circuit.

Green diode for normal operation indication

Full aluminum body for superior EMI shielding and extended operating temperature range

Large aperture f27.6mm for cables and bus bars



Applications:

MPS for particles accelerators

Gradient amplifiers for MRI devices

Stable power supplies

Precision drives

Batteries testing and evaluation systems

Power measurement and power analysis

Current calibration purposes
